Spunlace

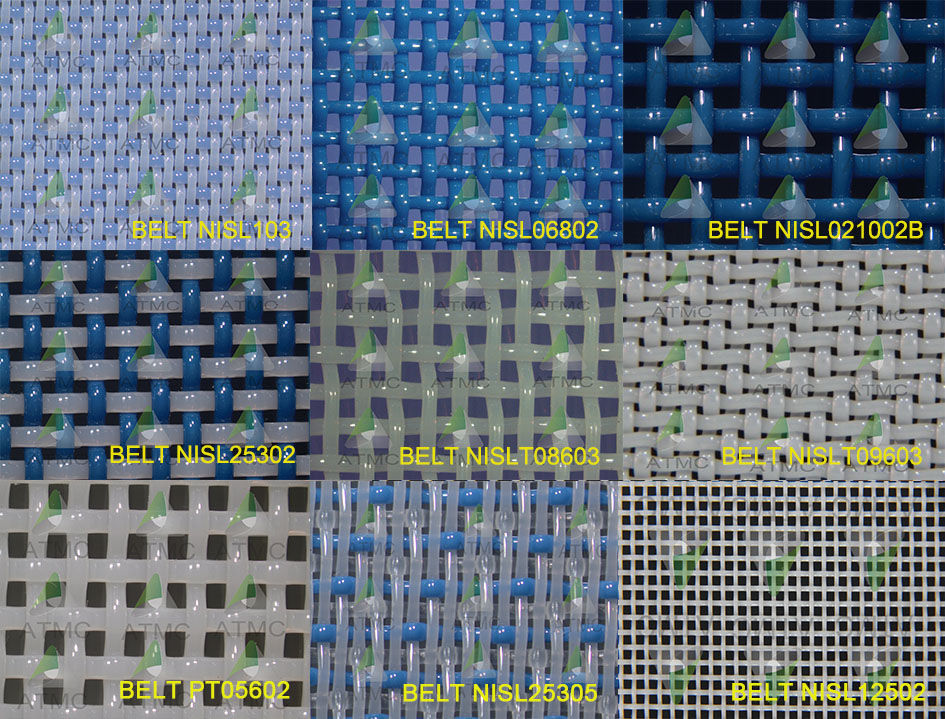

Our BELT NISL Series are manufactured using special yarns which provide superior contamination resistance and reduced web picking with the benefits high fiber support, excellent web uniformity, low bleed and excellent resistance to contamination.
Technical Parameters
| Style |
Yarn diameter (mm) |
Mesh (l/cm) |
Mesh (l/in) |
Aperture (mm) |
Air permeability |
Tensile Strength (N/cm) |
Weight (g/m²) |
Thickness (mm) |
Open Area (%) |
||||||
| Warp | Weft | Warp | Weft | Warp | Weft | MD | CD | m³/m²h | CFM 127/pa | Fabric | Seam | ||||
| BELT NISL021002B | 1.00 | 1.00 | 2.80 | 2.70 | 7 | 7 | 2.57 | 2.70 | 32000 | 2000 | 1600 | 650 | 600 | 1.85 | 52.6 |
| BELT NISL03902 | 0.90 | 0.90 | 3.80 | 3.70 | 9.7 | 9.4 | 1.73 | 1.80 | 20000 | 1250 | 1600 | 650 | 550 | 1.70 | 43.9 |
| BELT NISL04902 | 0.90 | 0.90 | 4.70 | 4.70 | 12 | 12 | 1.23 | 1.23 | 17600 | 1170 | 1600 | 650 | 950 | 1.66 | 33.3 |
| BELT NISL05602 | 0.60 | 0.60 | 5.90 | 5.60 | 15 | 14 | 1.09 | 1.19 | 18000 | 1125 | 1600 | 650 | 620 | 1.10 | 42.9 |
| BELT NISL05802 | 0.80 | 0.80 | 5.10 | 5.10 | 13 | 13 | 1.16 | 1.16 | 16000 | 1000 | 1600 | 650 | 890 | 1.48 | 35.0 |
| BELT NISL06652 | 0.65 | 0.65 | 7.40 | 6.80 | 19 | 17 | 0.70 | 0.82 | 14500 | 1200 | 1600 | 650 | 650 | 1.19 | 29.0 |
| BELT NISL06802 | 0.80 | 0.80 | 6.60 | 6.60 | 17 | 17 | 0.72 | 0.72 | 11600 | 725 | 1600 | 650 | 850 | 1.45 | 22.3 |
| BELT NISL07802 | 0.80 | 0.80 | 7.80 | 7.00 | 20 | 18 | 0.48 | 0.63 | 5920 | 370 | 1600 | 650 | 1100 | 1.45 | 16.5 |
| BELT NISL08502 | 0.50 | 0.50 | 9.50 | 8.60 | 24 | 22 | 0.55 | 0.66 | 10000 | 635 | 1600 | 650 | 890 | 0.47 | 29.9 |
| BELT NISL09452 | 0.40 | 0.40 | 10.00 | 10.00 | 25 | 25 | 0.60 | 0.60 | 16000 | 1000 | 900 | 500 | 400 | 0.75 | 36.0 |
| BELT NISL09452 | 0.45 | 0.45 | 10.00 | 8.60 | 25 | 22 | 0.55 | 0.71 | 15570 | 970 | 1600 | 650 | 450 | 0.88 | 33.7 |
| BELT NISL09502 | 0.50 | 0.50 | 10.00 | 10.00 | 25.4 | 25.4 | 0.50 | 0.50 | 10000 | 635 | 1600 | 650 | 500 | 0.90 | 25.0 |
| BELT NISL12502 | 0.50 | 0.50 | 13.50 | 8.50 | 34.3 | 21.6 | 0.24 | 0.68 | 6000 | 380 | 1600 | 650 | 630 | 0.95 | 18.7 |
| BELT NISL25302 | 0.22 | 0.30 | 27.50 | 15.50 | 70 | 39 | 0.14 | 0.35 | 5550 | 350 | 700 | 400 | 350 | 0.45 | 21.1 |
| BELT NISL06803 | 0.70 | 0.80 | 7.00 | 5.50 | 17.8 | 14.0 | 0.73 | 1.02 | 16000 | 1000 | 1600 | 650 | 750 | 1.53 | 28.6 |
| BELT NISL09603 | 0.50 | 0.60 | 10.50 | 9.20 | 26.7 | 23.4 | 0.45 | 0.49 | 8300 | 515 | 1600 | 650 | 650 | 1.05 | 21.3 |
| BELT NISL103 | 0.18 | 0.20 | 40.50 | 29.50 | 103 | 75 | 0.07 | 0.14 | 4500 | 285 | 500 | 300 | 260 | 0.33 | 11.1 |
