Product Details
Place of Origin: China
Brand Name: ATMC
Payment & Shipping Terms
Minimum Order Quantity: 1 pcs
Price: inquiry
Packaging Details: Standard export ply-wood case
Delivery Time: 30 work days
Payment Terms: L/C,T/T
Supply Ability: Purchase supply
Structure: |
Large Ring Spiral |
Pattern Description: |
SLDF |
Filling: |
Optional |
Loop Yarn Diameter (mm): |
1.00 |
Linked Yarn Diameter (mm): |
1.10 |
Loop Yarn Material: |
PET Round Monofilament |
Linked Yarn Material: |
PET Round Monofilament |
Filling Shape: |
Round Or Special Shape |
Air Permeability: |
300 - 1200 CFM 4740 - 19000 M3 /m2h |
Caliper(mm): |
3.30 |
Basis Weight (g/m2 ): |
1600 - 2300 |
Break Strength: |
≥1600 N/cm |
Fabric Color: |
White Or Required |
Structure: |
/ |
Pattern Description: |
/ |
Mesh × Count (cm): |
/ |
Warp Diameter (mm): |
/ |
Weft Diameter (mm): |
/ |
Warp Material: |
/ |
Weft Material: |
/ |
Air Permeability: |
/ |
Caliper (mm): |
/ |
Elongation (50N/cm): |
/ |
Break Strength: |
/ |
Fiber Support Index (FSI): |
/ |
Fiber Support Point (SP): |
/ |
Drainage Index (DI): |
/ |
Paper Side Open Area: |
/ |
Void Volume: |
/ |
Weight (g/m2 ): |
/ |
Fabric Color: |
/ |
Structure: |
Large Ring Spiral |
Pattern Description: |
SLDF |
Filling: |
Optional |
Loop Yarn Diameter (mm): |
1.00 |
Linked Yarn Diameter (mm): |
1.10 |
Loop Yarn Material: |
PET Round Monofilament |
Linked Yarn Material: |
PET Round Monofilament |
Filling Shape: |
Round Or Special Shape |
Air Permeability: |
300 - 1200 CFM 4740 - 19000 M3 /m2h |
Caliper(mm): |
3.30 |
Basis Weight (g/m2 ): |
1600 - 2300 |
Break Strength: |
≥1600 N/cm |
Fabric Color: |
White Or Required |
Structure: |
/ |
Pattern Description: |
/ |
Mesh × Count (cm): |
/ |
Warp Diameter (mm): |
/ |
Weft Diameter (mm): |
/ |
Warp Material: |
/ |
Weft Material: |
/ |
Air Permeability: |
/ |
Caliper (mm): |
/ |
Elongation (50N/cm): |
/ |
Break Strength: |
/ |
Fiber Support Index (FSI): |
/ |
Fiber Support Point (SP): |
/ |
Drainage Index (DI): |
/ |
Paper Side Open Area: |
/ |
Void Volume: |
/ |
Weight (g/m2 ): |
/ |
Fabric Color: |
/ |
SLDF RL Series

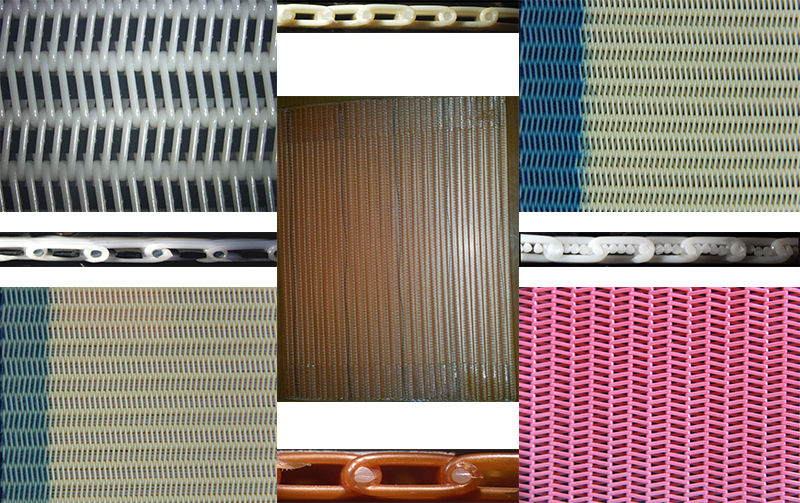

SLDF RL series is a large ring Spiral Linked Dryer Fabric (SLDF) which is an endless construction formed by joining helical formed loops of round monofilament yarn. The joining yarn passes through the “eye” formed when the right-hand helical formed yarns merge into each other. The spirals are oriented in a cross-machine direction. SLDF RL are available in a wide permeability range from 300-1500 CFM. Permeability reductions are achieved by inserting cross-directional yarns into the open area of the spiral. There is no weak link since spiral fabrics do not have traditional seams like woven fabrics. In addition, spiral constructions offer higher levels of wear and damage resistance and are very suitable for challenging positions. In the past, spiral designs were used extensively on brown paper applications. However, through processing and material improvements, spiral fabrics today have no application limitations. They run on some of the fastest publication grade machines.
Meanwhile, SLDF RL also can be used for belt press provide cost-effective solutions to numerous dewatering and process applications, i.e. belt press, belt filter press, dewatering, municipal and industrial waste water treatment, chemical processing, food processing and mining.
