Product Details
Place of Origin: China
Brand Name: ATMC
Payment & Shipping Terms
Minimum Order Quantity: 1 pcs
Price: inquiry
Packaging Details: Standard export ply-wood case
Delivery Time: 30 work days
Payment Terms: L/C,T/T
Supply Ability: Purchase supply
Structure: |
/ |
Pattern Description: |
/ |
Mesh × Count (cm): |
/ |
Warp Diameter (mm): |
/ |
Weft Diameter (mm): |
/ |
Warp Material: |
/ |
Weft Material: |
/ |
Air Permeability: |
/ |
Caliper (mm): |
/ |
Elongation (50N/cm): |
/ |
Break Strength: |
/ |
Fiber Support Index (FSI): |
/ |
Fiber Support Point (SP): |
/ |
Drainage Index (DI): |
/ |
Paper Side Open Area: |
/ |
Void Volume: |
/ |
Weight (g/m2 ): |
/ |
Fabric Color: |
/ |
Structure: |
/ |
Pattern Description: |
/ |
Mesh × Count (cm): |
/ |
Warp Diameter (mm): |
/ |
Weft Diameter (mm): |
/ |
Warp Material: |
/ |
Weft Material: |
/ |
Air Permeability: |
/ |
Caliper (mm): |
/ |
Elongation (50N/cm): |
/ |
Break Strength: |
/ |
Fiber Support Index (FSI): |
/ |
Fiber Support Point (SP): |
/ |
Drainage Index (DI): |
/ |
Paper Side Open Area: |
/ |
Void Volume: |
/ |
Weight (g/m2 ): |
/ |
Fabric Color: |
/ |

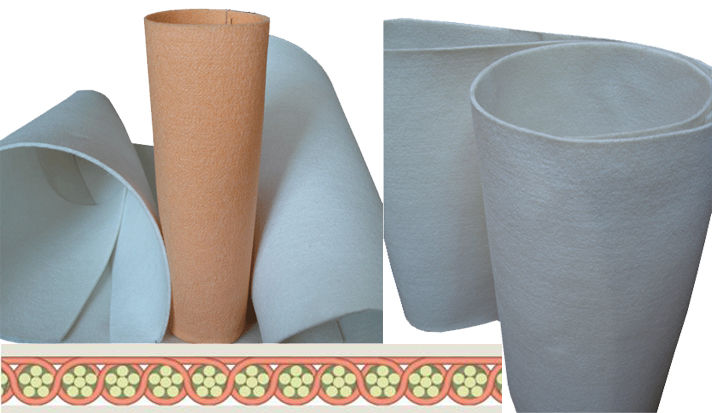

Single Layer BOM Press Fabric
Single Layer BOM Press Fabric is made up of single base layer fabric and fiber layer. Base layer is woven from synthetic monofilament or multi-filament. The structure is designed base on different paper machine, different press position and different type of paper. Fiber layer is consisted of different lap of fiber web and different diameter of fiber for the best trainability and sheet support. It has good quality properties such as less elongation, easy to clean, non-marking, long life performance etc. and can be used in all different kinds of paper making machine to produce all different kinds of paper.
Application:
Paper machine:Cylinder, Super Former, Fourdrinier, Inclined Wire Machine, Nip Wire Machine etc for forming section felt, press fabric
Machine Velocity:≤800m/min
Paper:≥8g/m2
NIP:≤80kN/m
Technical Parameter:
GSM:700~1200g/m2
GSM Tolerance:≤ ±4%
Air Permeability:30~120cfm
Tensile Strength:≥ 2000N/5cm
Elongation Percentage:≤ 1%
Width Variation:≤ ±2cm
