Horizontal Vacuum Filters Industrial Fabric BELT

Product Details

Place of Origin: China

Brand Name: ATMC

Payment & Shipping Terms

Minimum Order Quantity: 1 pcs

Price: inquiry

Packaging Details: Standard export ply-wood case

Delivery Time: 30 work days

Payment Terms: L/C,T/T

Supply Ability: Purchase supply

Get Best Price
Contact Now
Specifications
Highlight:

horizontal vacuum filters industrial fabric

,

horizontal vacuum filters belt ar series

Structure:
/
Pattern Description:
/
Mesh × Count (cm):
/
Warp Diameter (mm):
/
Weft Diameter (mm):
/
Warp Material:
/
Weft Material:
/
Air Permeability:
/
Caliper (mm):
/
Elongation (50N/cm):
/
Break Strength:
/
Fiber Support Index (FSI):
/
Fiber Support Point (SP):
/
Drainage Index (DI):
/
Paper Side Open Area:
/
Void Volume:
/
Void Volume:
/
Weight (g/m2 ):
/
Fabric Color:
/
Structure:
/
Pattern Description:
/
Mesh × Count (cm):
/
Warp Diameter (mm):
/
Weft Diameter (mm):
/
Warp Material:
/
Weft Material:
/
Air Permeability:
/
Caliper (mm):
/
Elongation (50N/cm):
/
Break Strength:
/
Fiber Support Index (FSI):
/
Fiber Support Point (SP):
/
Drainage Index (DI):
/
Paper Side Open Area:
/
Void Volume:
/
Void Volume:
/
Weight (g/m2 ):
/
Fabric Color:
/
Description

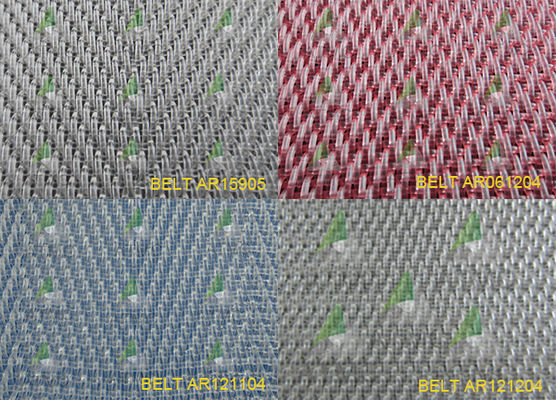

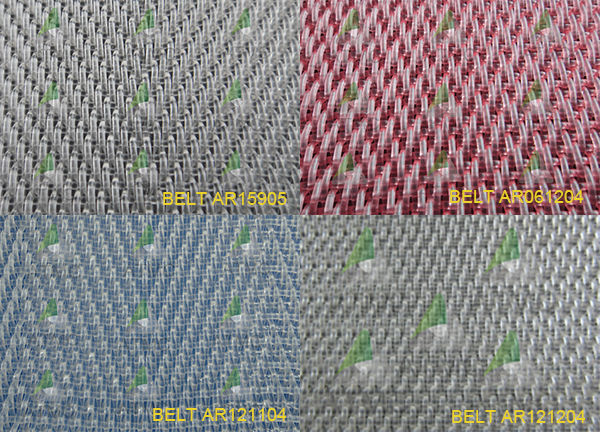

Horizontal Vacuum Filters Industrial Fabric BELT

BELT AR Series



Filter belt for horizontal vacuum filters are used for filtration of very fine inorganic suspensions, especially in the mining industry, and for gypsum filtration in flue gas desulphurization (FGD) plants.

To increase the ability of the belt to filter very small particles, some filters fabrics are made of the combination of PET monofilament and multifilament yarns (multifilament yarns filling apertures in the monofilament). One of the disadvantages of using multifilament yarns is a quick decrease in the air permeability of the fabric during operation, because blinding occurs faster than usual and consequently the fabric service life is shorter. In the past, we used different types of single or double layer monofilament fabrics with small apertures, capable of filtering very small particles without blinding. If the monofilament fabric is to have a large amount of small apertures, small-diameter monofilament yarn has to be used. On the other hand, the bending resistance of the monofilament fabric is lower than that of the multifilament fabric. If the monofilament fabric is installed on a large filter belt, the risk of rippling and damage to the fabric will be higher.



BELT AR series will be mainly used for filter industry and others requiring high tensile strength whose material operating temperature exceeds 100 degrees and alkali contents (sodium hydroxide ) exceeds 20%.





Technical Parameters





Style

Yarn Diameter  (mm)

Air Permeability

Thickness (mm)

Tensile (N/cm)

Weight (g/m²)

Material

Warp

Weft

m³/m²h

CFM

Fabric

Seam

BELT AR061204

1.20

1.20

6800

430

2.90

1600

900

1900

PA6

BELT AR121104

0.90

1.10

9600

600

3.05

1600

900

1570

PA6

BELT AR121204

1.05

1.20

12000

760

3.50

1600

900

2600

PA6

BELT AR15905

0.90

0.90

6800

430

2.75

1600

900

2000

PA6



Horizontal Vacuum Filters Industrial Fabric BELT 0
