Designed as a plain weave paper side over eight shed wear side SSB triple layer, the PRINT SSB55208WM71NG-360CFM achieves both a high number of support points and a high Fiber Support Index for the lowest marking level. This ensures a clean running surface and excellent mechanical retention properties. The 3 to 2 CD yarn ratio between paper side and wear side allows medium and coarse yarns on the wear side to enhance wear potential while maintaining dimensional stability. The surface properties and high internal void volume contribute to excellent dewatering capacity. This fabric is ideal for applications requiring superior sheet quality and runnability.

Key Features

High Fiber Support Index for lowest marking level
Clean running surface with excellent mechanical retention
High dimensional stability with good life potential
Excellent dewatering capacity from high internal void volume

Product Parameters

Product Name	Forming Fabric PRINT SSB55208WM71NG
Material	Polyester monofilament
Function	Paper Machine
Application	Printing & Writing paper, Light Weight Kraft, Wrapping and Packaging Papers, Board Grades top layer, under-top layer or back layer, etc.
Technical	1/1.5/2/2.5/3 layers forming fabric
Width	Customized
Weigh	Customized
Fabric Color	Customized

Product Images

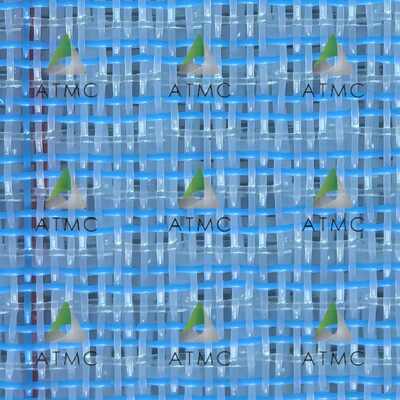

Top Side View

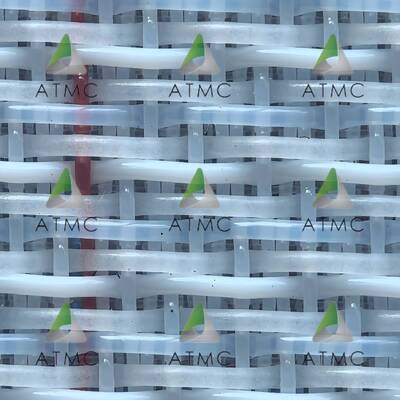

Bottom Side View

Application

Printing & Writing paper, Light Weight Kraft, Wrapping and Packaging Papers, Board Grades top layer, under-top layer or back layer, etc.

Tags:

high-temperature resistant paper machine fabric

temperature resistant paper machine fabric

high-temperature paper machine forming fabric

SSB Triple Layer Forming Fabric with High Support Points and FSI for Lowest Marking Level and Excellent Retention in Printing Paper Production

Get Best Price

SSB Triple Layer Paper Making Wire with Stable Construction through Two MD Thread Systems and High CD Stability for Reliable Mill Operations

Get Best Price

SSB Triple Layer Paper Machine Cloth with Open Structure for High Dewatering Capacity and Easy Showering Featuring Two over Ten Shed Weave

Get Best Price

SSB Triple Layer Forming Fabric PRINT SSB50210W with Fine Paper Side for Uniform Profiles and Good Fiber Support in Printing Paper Production

Get Best Price

SSB Triple Layer Forming Wire with Even and Fine Paper Side for Uniform Profiles and Good Fiber Support in Printing Paper Production

Get Best Price

Products Details

Home > Products >

Forming Fabrics

SSB Triple Layer Paper Machine Cloth with High Internal Void Volume and Surface Properties for Excellent Dewatering and Dimensional Stability

All Category

Forming Fabrics

Pulp Grades

Single Layer

Double and Half Layer

Triple Layer / SSB

Kraft & Packaging Grades (Brown Paper)

Single Layer

1.5 Layer

Double and Half Layer

Triple Layer / SSB

Publication Grades

Single Layer

Double and Half Layer

Triple Layer / SSB

Tissue Grades

Single Layer

Double and Half Layer

Triple Layer / SSB

Speciality Grades

Triple Layer / SSB

Press Felts

Pulp Grades

BOM Double Layer

BOM 1+1+1 Laminated

Kraft & Packaging Grades (Brown Paper)

BOM Double Layer

Dryer Fabrics

Woven with Flat Yarn

Double Cloth Design

Warp Float 1.5 Layer Design

Woven with Round Yarn

Double Layer

Spiral Linked with Flat Yarn

Spiral Linked with Round Yarn

Thin Ring

Small Ring

Middle Ring

Industrial Fabrics

Filter Cloth

Polyester Filter Cloth

Polypropylene Filter Cloth

Vinylon Filter Cloth

Non Woven Fabric

Spunbond/Meltblown

Airlaid

Spunlace

Wire Mesh

Stainless Steel Wire Mesh

Process Belts

Cylinder Mould Wire Mesh

Corrugated Belts

High Speed Fasttrack Cotton Belt

High-Speed Silencing Belt

Filter Belt

Industrial Felt Belts

Food Industry

Conveyor Belts

Stock Preparation Equipment

Pulping Equipment

Refining Equipment

Screening Equipment

Thickening Equipment

Cleaning Equipment

Paper Machine Components

Headbox

Dewatering System

Cover + Dewatering Box

Oscillating Shower

Dryer Cylinder

Rolls

Guide Roll

Suction Couch Roll

Bow Roll / Spreader Roll

Rewinder

Slitter Knife

Cylinder Mould

Paper Making Equipment Consumable Accessories

DDR Disc

Disc Filter Plate

Doctor Blade & Holder & Air Tube

Filter Bag

Paper Carrier Rope

Screen Basket

Screen Basket - Slot Type

Spray Shower / Nozzle

SSB Triple Layer Paper Machine Cloth with High Internal Void Volume and Surface Properties for Excellent Dewatering and Dimensional Stability

Brand Name:	ATMC
MOQ:	1pc
Price:	inquiry
Packaging Details:	Standard export ply-wood case
Payment Terms:	L/C,D/A,D/P,T/T

Detail Information

Product Description

Detail Information

Brand Name:

ATMC

Structure:

SSB Triple Layer

Pattern Description:

2/8 Shed

MD Yarns Top:

MD Yarns Bottom:

CMD Yarns Top:

CMD Yarns Bottom:

Caliper (mm) New:

1.100

Caliper (mm) Critical:

Air Permeability:

360CFM, 5688m³/m²h

Elongation(50N/cm):

≤0.45%

Break Strength:

≥1000 N/cm

Fiber Support Index:

152/146

Fiber Support Point:

869/827 /cm²

Drainage Index:

27.9/29.5

Paper Side Open Area:

32.6/34.0%

Void Volume:

Basis Weight (g/m²):

Fabric Color:

Light Blue, Light Green

Minimum Order Quantity:

1pc

Price:

inquiry

Packaging Details:

Standard export ply-wood case

Payment Terms:

L/C,D/A,D/P,T/T

Highlight:
